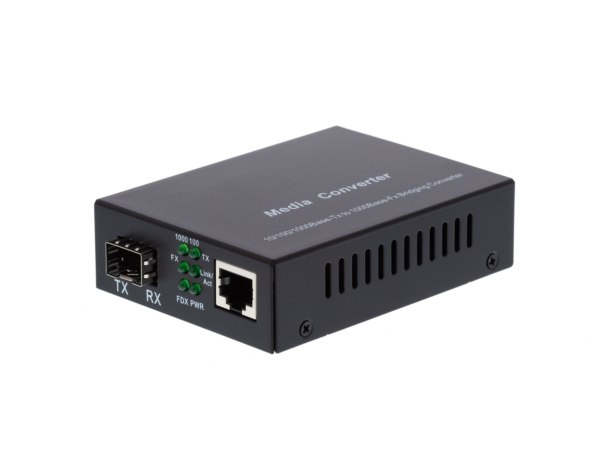

Fiber Media Converter Multimode 10/100/1000-Mbps
1) Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000M
working pattern.
2) With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control, decrease of
broadcast storm.
3) With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure
reliable data transmission and long working life.
4) Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.
5) Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.
6) Supporting 9kbyte super data packet transmission By store and forwarder mode
7) Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate.
8) With more than 50,000 hours MTBF, complying with telecom operating standard.
9) Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).
Technical Parameter:
Access Method: 10/100/1000Mbps
Standard: IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IE
EE802.1d
Wavelength: 1310nm
Distance: Dual Fiber MM :550m
Conversion Method: Media Conversion
Time Delay: <10μs
BER: <1/1000000000
LED Indicator Lamps: 1000M ,100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply: DC5V 1A (external power), AC100-260 0.5A /DC-48( internal power )
Power Dissipation: 3W
Operating Temperature: 0 ~ 50 ℃
Working rate 10/100/1000Mbps
Storage Humidity 5%~90%
Storage Temperature -40~ 70 ℃
Working humidity 5%~90% non-condescending
