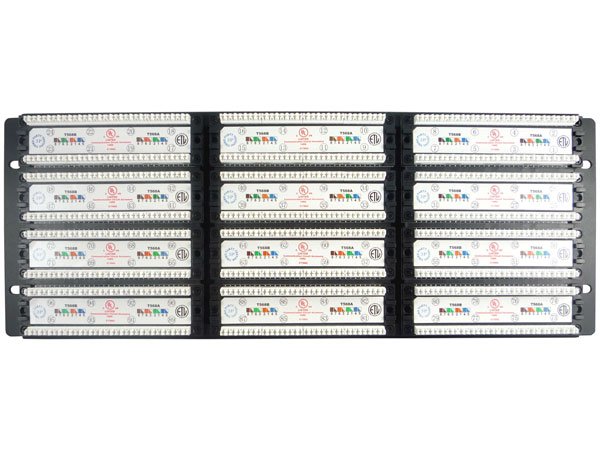

96 port Cat5e rackmount patch panel for connecting incoming and outgoing lines of a local area network. Supports network convergence protocols delivering maximum bandwidth and extended reliability for all LAN, multimedia and Power over Ethernet applications. Suitable for applications using 22-26 AWG network cables, 1000BASE-T Gigabit Ethernet, 100BASE-TX Fast Ethernet, 10BASE-T Ethernet, voice, video and other applications.
Standard 19″ width and 4U (7″ height)
568 A/B color coded punch down blocks
110 style wiring
22-26 AWG wire
Numbered ports for clear port identification
Insulation diameter range: 0.70mm to 1.40mm
Jack contacts: Phosphor Bronze, 50 micron Gold plate over Nickel plating
IDC contacts: Phosphor Bronze, 50 micron Gold plate over Nickel plating
Operating temperature: -40° C to 70° C
Flamability: UL94 VO
Dimensions: 19″ (W)
x 7″ (H) x 1 1/4″ (D)
Meets TIA/EIA-568B.2/568B.2-1 Cat5e ISO/IEC 11801 and EN 50173-1 specifications
Meets or exceeds EIA/TIA Cat5e standards
UL certified and listed (UL1863)
RoHS compliant
